Overview

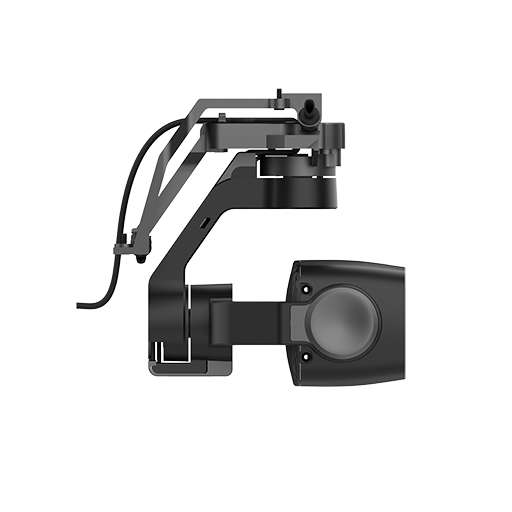

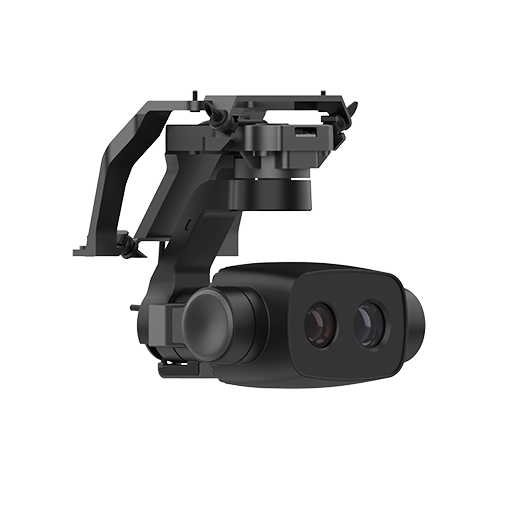

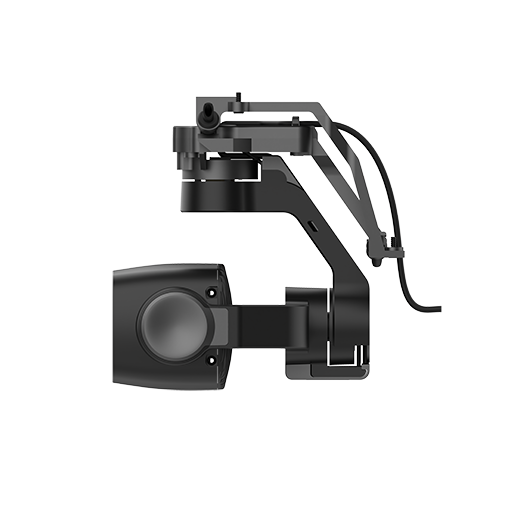

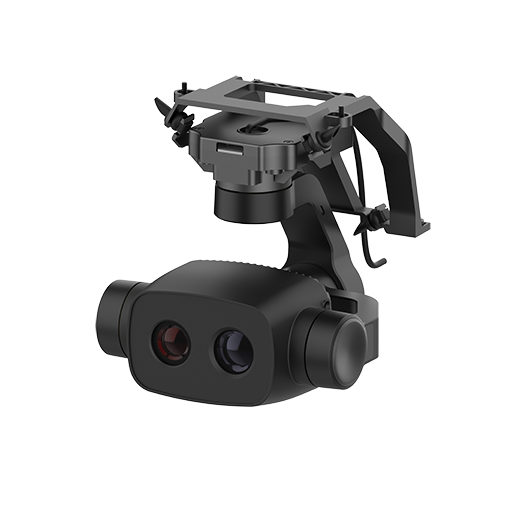

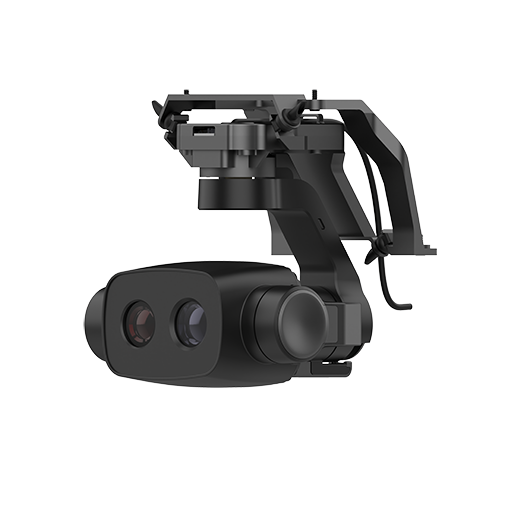

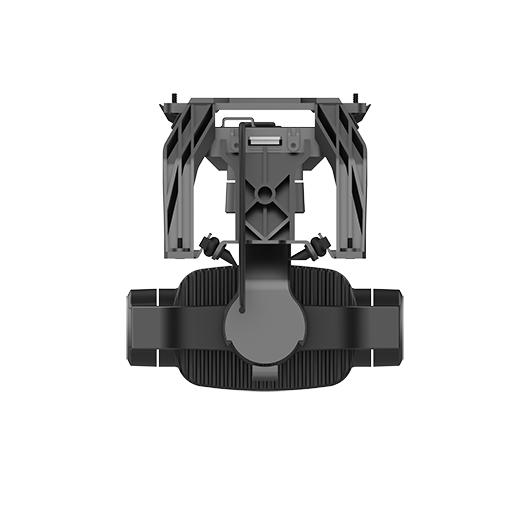

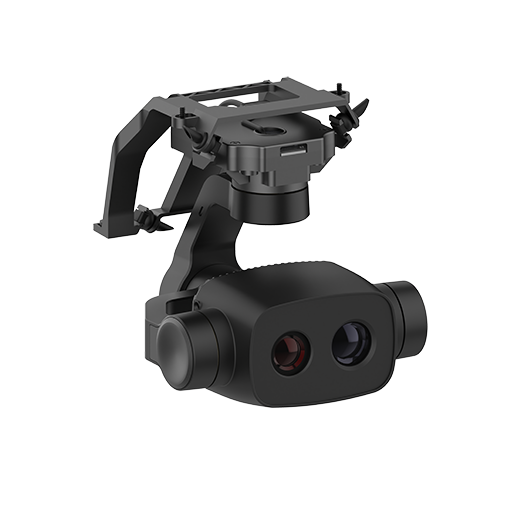

A dual-band EO/IR pod with zoom EO and LWIR on a three-axis mechanically stabilized gimbal for day/night all-weather reconnaissance and stable tracking. Lightweight and modular for multiple UAV platforms.
Highlights
- Dual-band all-weather sensing
- EO zoom fused with thermal IR
- Three-axis mechanical stabilization
- 4K HD recording
- Compatible with multiple UAV platforms
Key Features
- Dual-band fusion sensing: EO zoom and thermal IR cameras work together for all-weather, day/night target imagery.
- EO zoom: 4× optical and 16× digital zoom balance wide-area search with long-range detail recognition.
- Thermal IR: 640×512 LWIR penetrates smoke and low light to lock onto heat sources.
- Three-axis mechanical stabilization: pitch, roll and yaw isolation keeps imagery steady against carrier motion.
- HD recording and storage: 4K photo and 4K/30 fps video on local MicroSD up to 128 GB.
- Lightweight modular design: compact and light for easy deployment on multiple UAV types.
Specifications
| EO camera | 8 MP, 3–12 mm, 4× optical / 16× digital |
|---|---|
| IR camera | 640×512, 12 μm, 9.1 mm, 8–14 μm |
| Gimbal | 3-axis; 0.1° control accuracy |
| Storage | MicroSD up to 128 GB |
| Operating temp. | -20°C to +40°C |
